TBW支撑扳手
发送Email ShareTBW系列
通过拧下Backup Nut轻松安装和拆卸

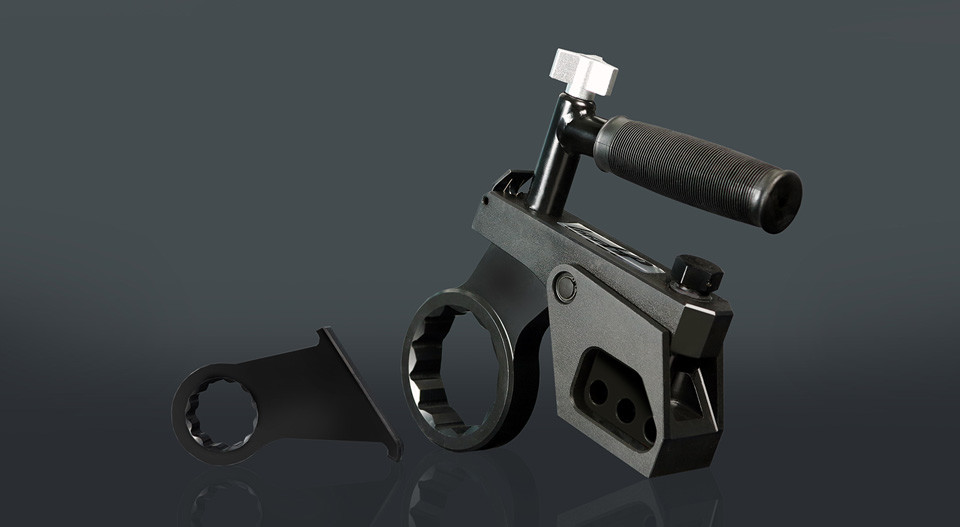

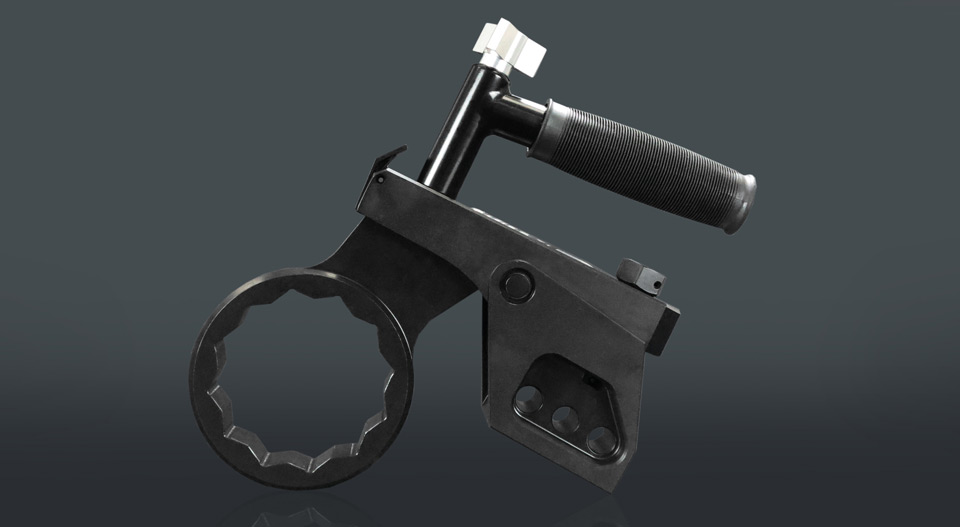

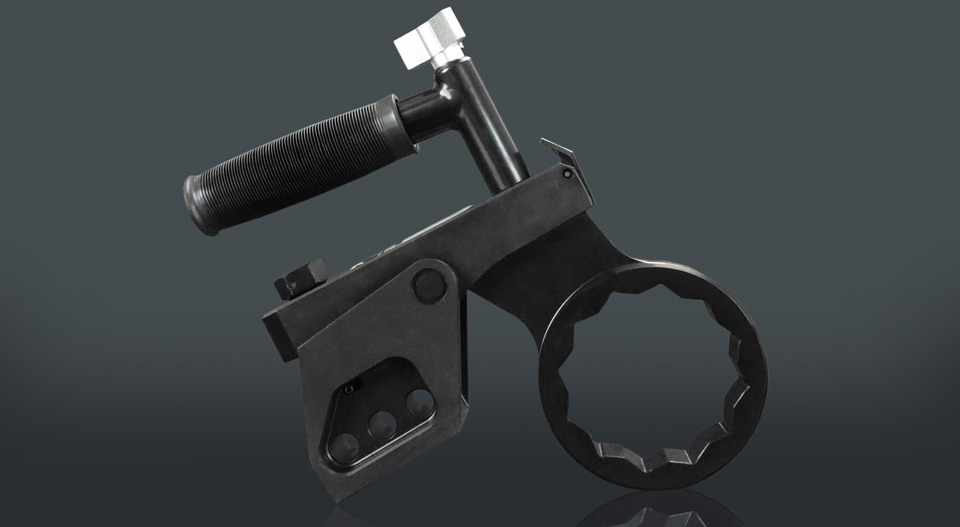

TBW系列支撑扳手

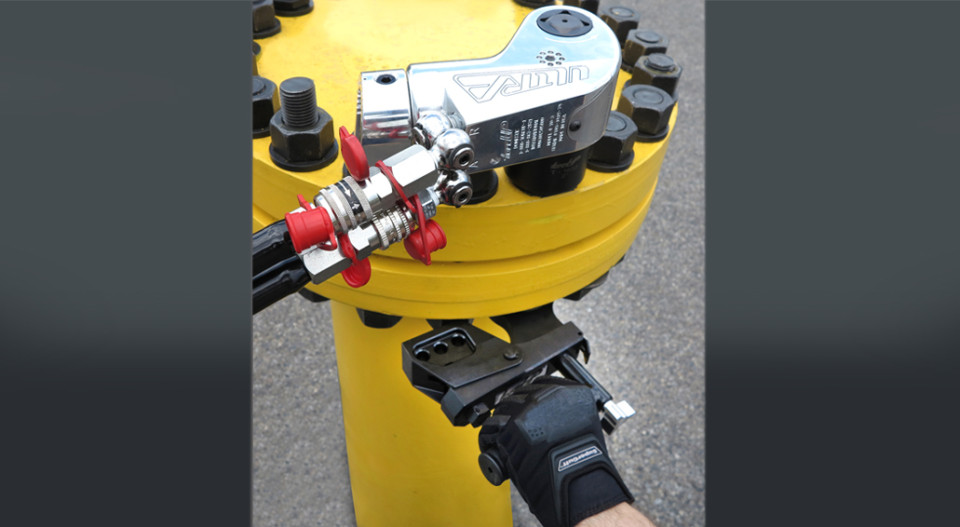

在螺栓连接过程中停止反转螺母
- 通过简单地松开千斤顶螺钉机械拆卸
- 提供握把，安全易于安装
- 真正的TorcUP设计 - 美国原装
- 自定义配置可用
- 公制和标准尺寸
标准尺寸
| Part # | Size |
|---|---|
| BC-012 | 3/4 |
| BC-014 | 7/8 |
| BC-100 | 1 |
| BC-101 | 1 1/6 |
| BC-102 | 1 1/8 |
| BC-104 | 1 1/4 |
| BC-105 | 1 5/16 |
| BC-106 | 1 3/8 |
| BC-107 | 1 7/16 |
| BC-108 | 1 1/2 |
| BC-110 | 1 5/8 |
| BC-111 | 1 11/16 |
| BC-113 | 1 13/16 |
| BC-114 | 1 7/8 |
| BC-200 | 2 |
| BC-201 | 2 1/16 |
| BC-203 | 2 3/16 |
| BC-204 | 2 1/4 |
| BC-206 | 2 3/8 |
| BC-208 | 2 1/2 |
| BC-209 | 2 9/16 |
| BC-210 | 2 5/8 |
| BC-212 | 2 3/4 |
| BC-214 | 2 7/8 |
| BC-215 | 2 15/16 |
| BC-302 | 3 1/8 |
| BC-304 | 3 1/4 |
| BC-306 | 3 3/8 |
| BC-308 | 3 1/2 |
| TBW-SS套装包含扳手手柄，10个标准后挂式滤芯和手提箱 | |
公制尺寸
| Part # | Size |
|---|---|
| BC-19M | 19 |
| BC-22M | 22 |
| BC-24M | 24 |
| BC-25M | 25 |
| BC-27M | 27 |
| BC-28M | 28 |
| BC-30M | 30 |
| BC-32M | 32 |
| BC-36M | 36 |
| BC-41M | 41 |
| BC-46M | 46 |
| BC-50M | 50 |
| BC-55M | 55 |
| BC-60M | 60 |
| BC-65M | 65 |
| BC-70M | 70 |
| BC-75M | 75 |
| BC-80M | 80 |
| BC-85M | 85 |
| BC-90M | 90 |
| BC-95M | 95 |
| TBW-SS套装包含扳手手柄，10个公制后背式弹药筒和手提箱 | |

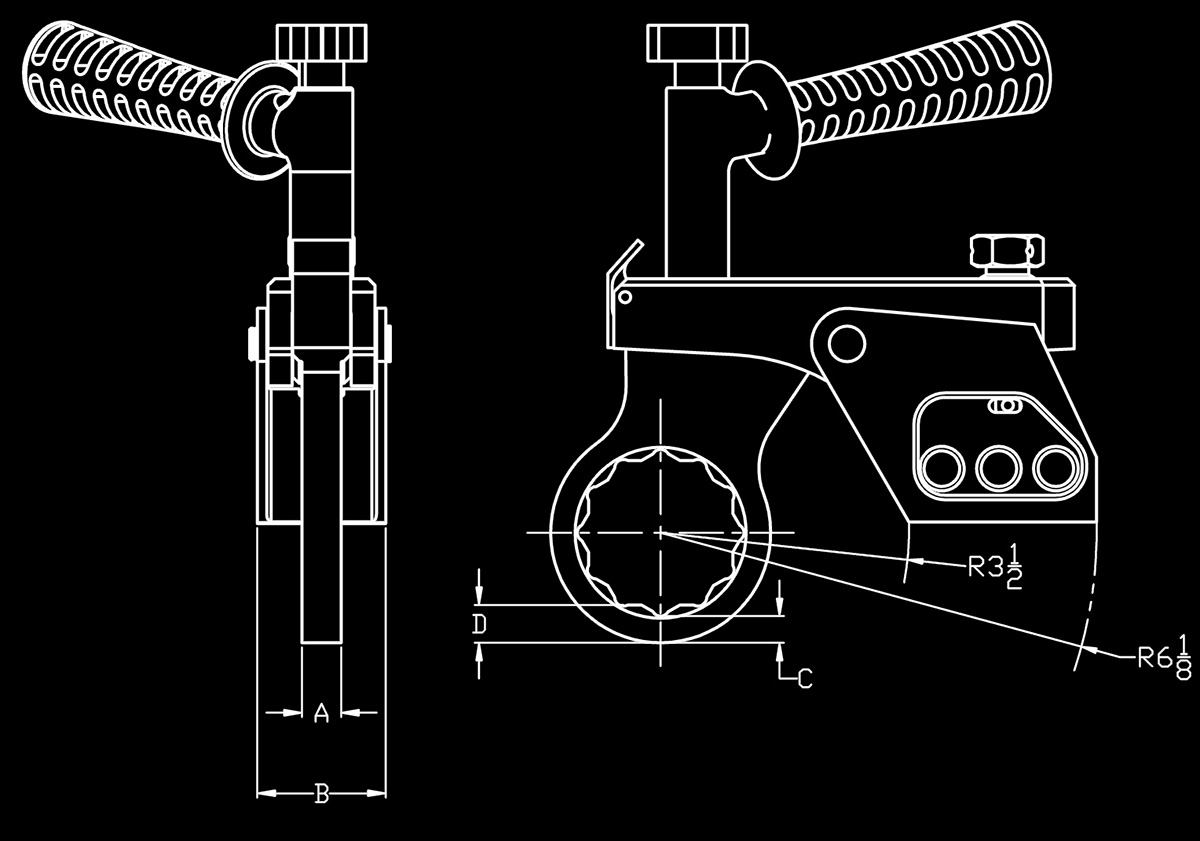

标准尺寸
| Part # | A (in) | B (in) | C (in) | D (in) |
|---|---|---|---|---|
| BC-012 | 13/16 | 1 13/16 | 0.20 | 0.26 |
| BC-014 | 13/16 | 1 13/16 | 0.20 | 0.27 |
| BC-100 | 13/16 | 1 13/16 | 0.25 | 0.33 |
| BC-101 | 13/16 | 1 13/16 | 0.35 | 0.34 |
| BC-102 | 13/16 | 1 13/16 | 0.25 | 0.34 |
| BC-104 | 13/16 | 1 13/16 | 0.37 | 0.47 |
| BC-105 | 13/16 | 1 13/16 | 0.38 | 0.48 |
| BC-107 | 13/16 | 1 13/16 | 0.37 | 0.49 |
| BC-108 | 13/16 | 1 13/16 | 0.37 | 0.49 |
| BC-110 | 13/16 | 1 13/16 | 0.37 | 0.50 |
| BC-113 | 13/16 | 1 13/16 | 0.39 | 0.53 |
| BC-114 | 13/16 | 1 13/16 | 0.39 | 0.54 |
| BC-200 | 13/16 | 1 13/16 | 0.39 | 0.55 |
| BC-201 | 13/16 | 1 13/16 | 0.39 | 0.60 |
| BC-203 | 1 | 1 13/16 | 0.39 | 0.56 |
| BC-204 | 1 | 1 13/16 | 0.39 | 0.57 |
| BC-206 | 1 | 1 13/16 | 0.39 | 0.58 |
| BC-208 | 1 | 1 13/16 | 0.39 | 0.59 |
| BC-209 | 1 | 1 13/16 | 0.39 | 0.59 |
| BC-210 | 1 | 1 13/16 | 0.39 | 0.60 |
| BC-212 | 1 | 1 13/16 | 0.39 | 0.61 |
| BC-214 | 1 | 1 13/16 | 0.39 | 0.62 |
| BC-215 | 1 | 1 13/16 | 0.39 | 0.63 |
| BC-302 | 1 | 1 13/16 | 0.43 | 0.68 |
| BC-304 | 1 | 1 13/16 | 0.43 | 0.69 |
| BC-306 | 1 | 1 13/16 | 0.44 | 0.72 |
| BC-308 | 1 | 1 13/16 | 0.46 | 0.75 |
| TBW-SS套装包含扳手手柄，10个标准后挂式滤芯和手提箱 | ||||
公制尺寸
| Part # | A (mm) | B (mm) | C (mm) | D (mm) |
|---|---|---|---|---|
| BC-19M | 21 | 46 | 5.1 | 6.7 |
| BC-22M | 21 | 46 | 5.2 | 7.0 |
| BC-24M | 21 | 46 | 6.3 | 8.3 |
| BC-25M | 21 | 46 | 6.3 | 8.4 |
| BC-27M | 21 | 46 | 6.3 | 8.5 |
| BC-28M | 21 | 46 | 6.3 | 8.6 |
| BC-30M | 21 | 46 | 9.4 | 11.9 |
| BC-32M | 21 | 46 | 9.4 | 12.1 |
| BC-36M | 21 | 46 | 9.4 | 12.4 |
| BC-41M | 21 | 46 | 9.4 | 12.8 |
| BC-46M | 21 | 46 | 9.9 | 13.7 |
| BC-50M | 21 | 46 | 9.9 | 14.0 |
| BC-55M | 25 | 46 | 9.9 | 14.4 |
| BC-60M | 25 | 46 | 9.9 | 14.7 |
| BC-65M | 25 | 46 | 9.9 | 15.1 |
| BC-70M | 25 | 46 | 9.9 | 15.5 |
| BC-75M | 25 | 46 | 9.9 | 15.9 |
| BC-80M | 25 | 46 | 10.9 | 17.4 |
| BC-85M | 25 | 46 | 10.9 | 17.8 |
| BC-90M | 25 | 46 | 10.9 | 18.2 |
| BC-95M | 25 | 46 | 10.9 | 18.6 |
| TBW-SS套装包含扳手手柄，10个公制后背式弹药筒和手提箱 | ||||
